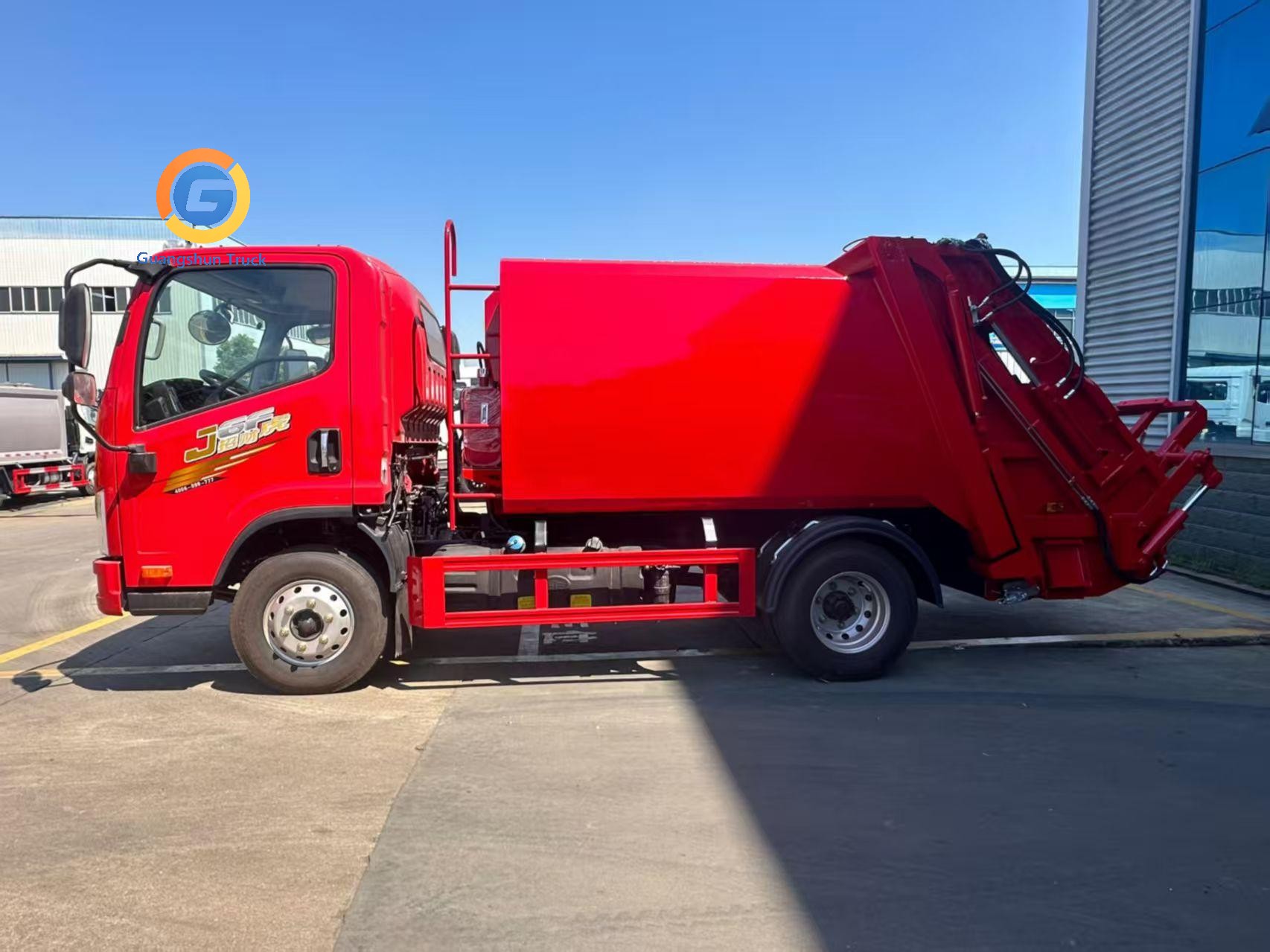

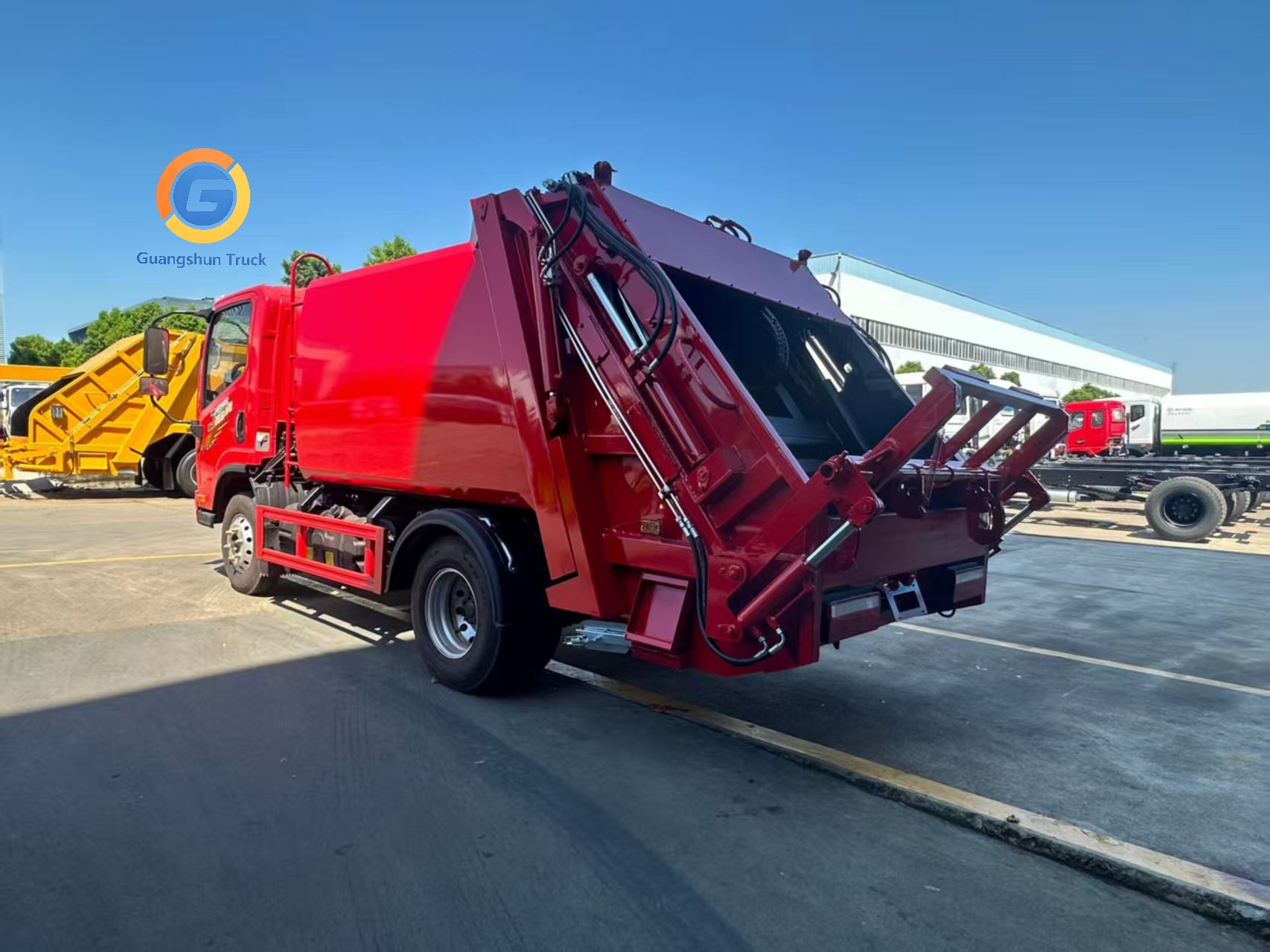

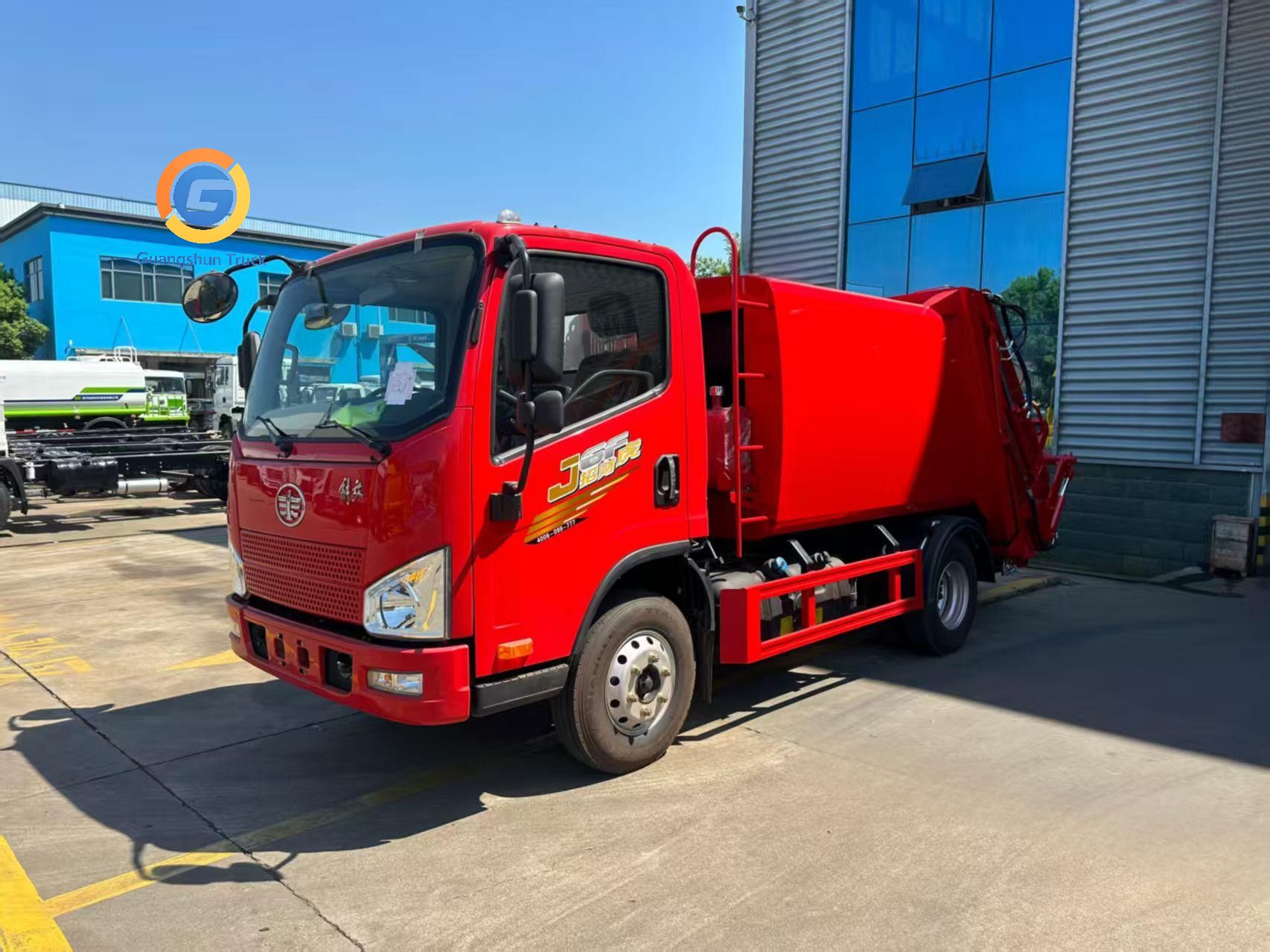

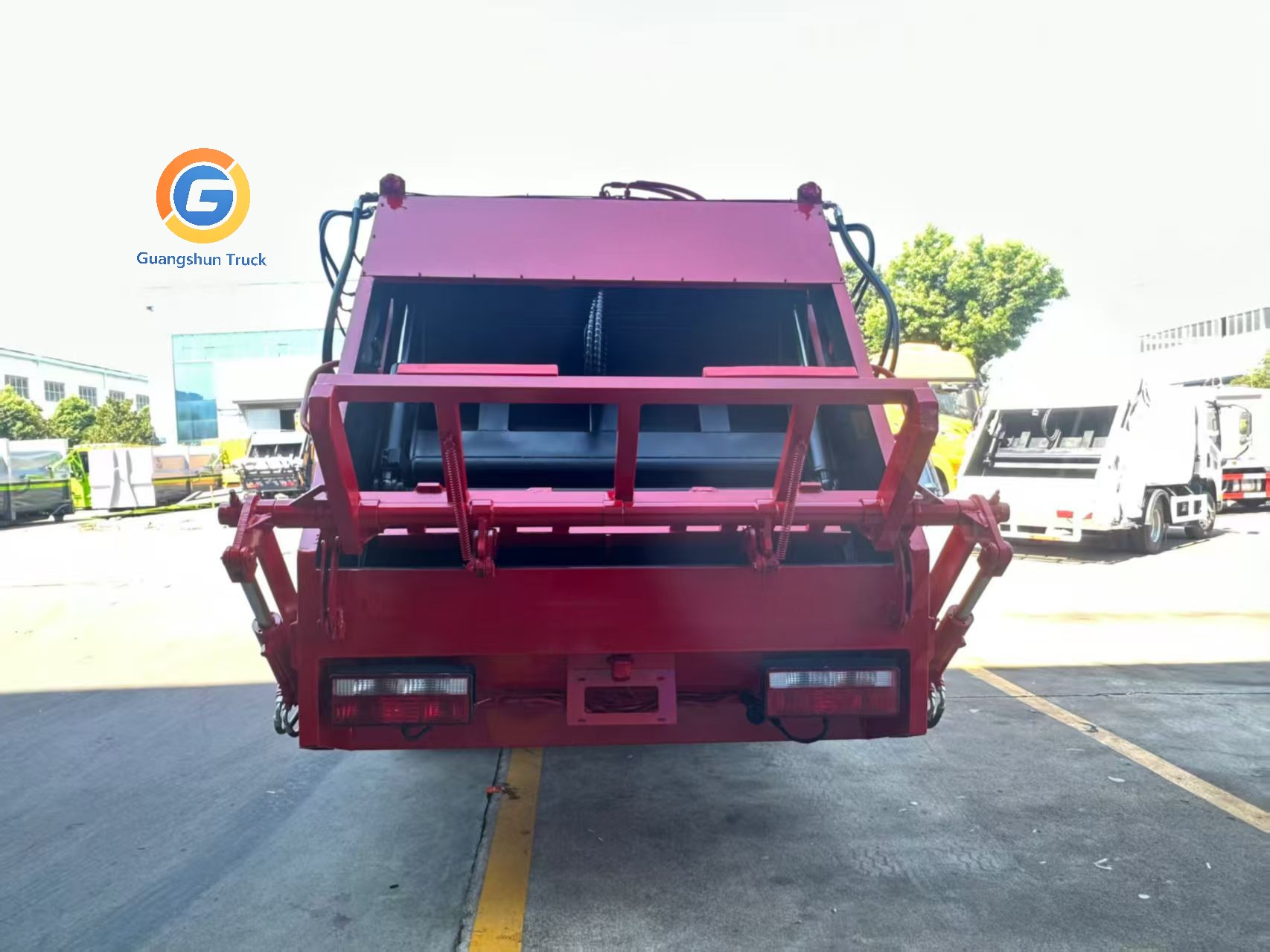

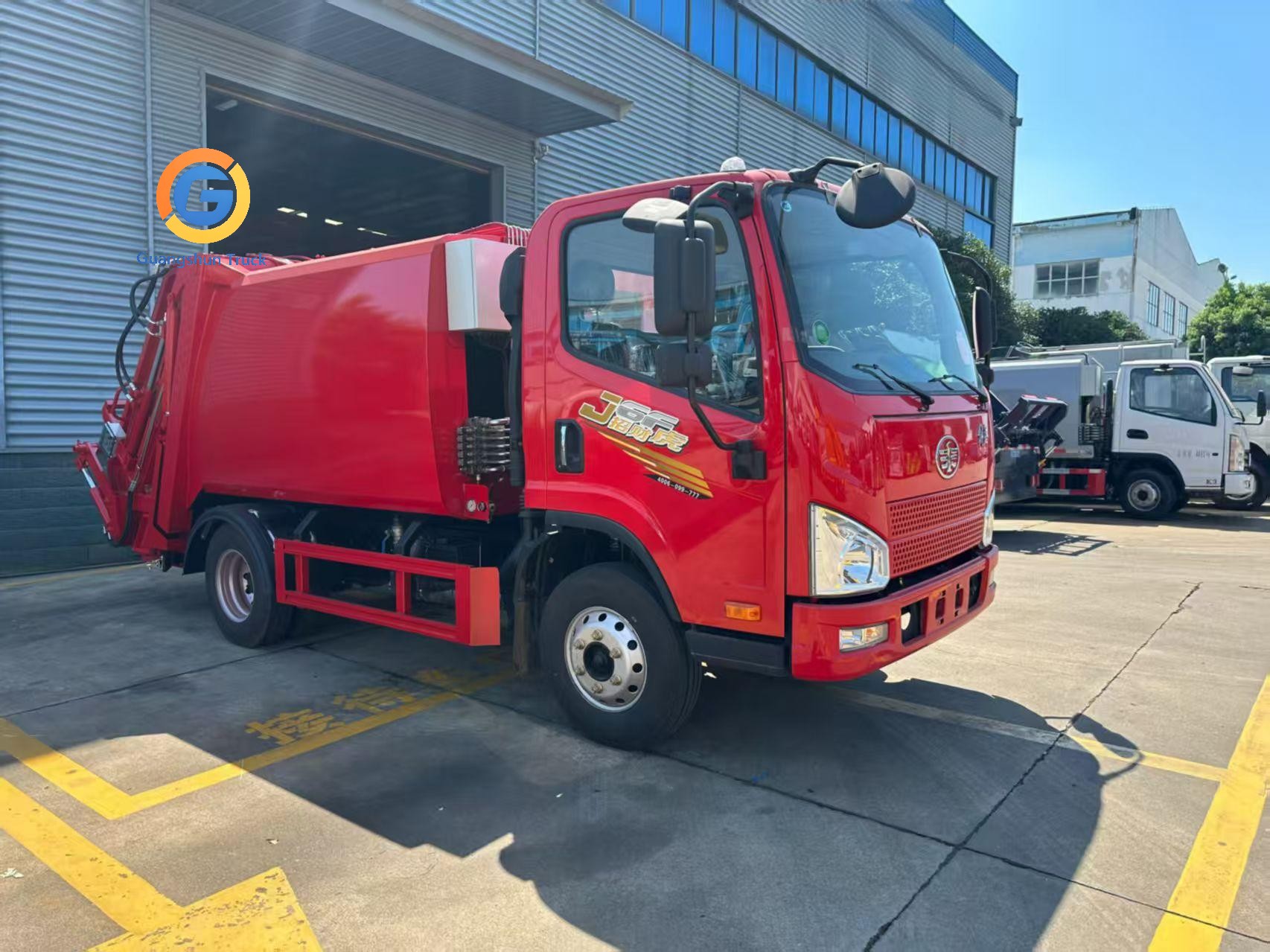

FAW 4X2 8CBM Compressed Garbage Truck
Hubei Guangshun Truck
Guangshun --Compressed Garbage Truck Introduction
A compressed garbage truck refers to a specialized vehicle that uses compression technology to compress the volume of garbage, making the transportation of garbage trucks more efficient.
Technical Specification
Guangshun 4X2 KV600 8CBM Compressed Garbage Truck | ||
General | Vehicle Brand | Guangshun |
Chassis Brand | Dongfeng Tianjin 4X2 | |
| Overall Dimension | L× W×H, 8100×2550×3200MM | |
G.V.W | ≤8280 kg | |
Chassis | Steering wheel | 4x2, LH Drive |
Wheelbase | 4175mm | |
Transmission | Manual,MLD 6Speed | |
Front / Rear Axle Load | 4500kg / 65000kg | |
Brake type | Air brake | |
Tire Specs Number | 10.00R18PR | |
Fuel Tank | 120L Tank | |
Engine | Engine brand | ISUZU |
Engine model | ||
Type of fuel | Diesel | |
Horsepower | 230hp | |
Displacement | 6200ML | |
Engine type | Inline SIX-cylinder, water-cooled, four-stroke, turbocharged, intercooled, direct-injection diesel engine | |
Emission standard | EURO 6 | |
Cab | Cab type | Dongfeng Tianjing Standard Cab |
Crew seat | 3 | |
Compress Collection Bin | Tank Volume &Shape | 14cbm Arc-shape |
Tank Material /thickness | Q235 (Special Steel) Bottom:4mm Side.4mm | |
Tank manufacturing process | Whole board manufacturing | |
Compression Ratio | 1:3.4 | |
The effective volume of the bucket | 20.8m | |
Loading cycle time | ≤40 s | |
unload garbage time | ≤45 s | |
Control method | Automatic,Manual | |
Max. Pressure of hydraulic system | 18MPa | |
Control System | PLC OR CAN | |
Control panel | English or Your language | |
Standard accessories | Dust bin lifter,Ladder, warning lights, Emergency stop button handrail, fire extinguisher, basic tool kit, English manual.. | |
Optional | ** Back alarm and Camera can be equipped. Optional ** ltaly mulit-valve can be choose. **240L(single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose. | |
Color & Logo : Customize according to customer’s requirement Accessories: Warning lights, edge lights, and work lighting | ||
Guangshun Compressed Garbage Trucks Advantages and features:
1. Enhance transportation efficiency: By compressing garbage, the volume of garbage can be significantly reduced, the loading capacity of trucks can be increased, the number of transportation trips can be decreased, and the efficiency of garbage collection can be accelerated.
2. Enhance environmental protection performance: The entire vehicle is fully sealed. All the wastewater generated during the compression process enters the sewage tank, which can prevent garbage from scattering and wastewater leakage, reducing pollution to the environment.
3. Reduce operating costs: After garbage is compressed, fuel consumption decreases accordingly, reducing fuel consumption and gas emissions, and also lowering transportation costs.
4. Easy and safe operation: It adopts a computer control system, and the operation is automated. All filling, unloading and discharging operations only require one driver to operate, reducing the labor intensity of sanitation workers. Moreover, it is equipped with a dual insurance system to ensure operation safety.

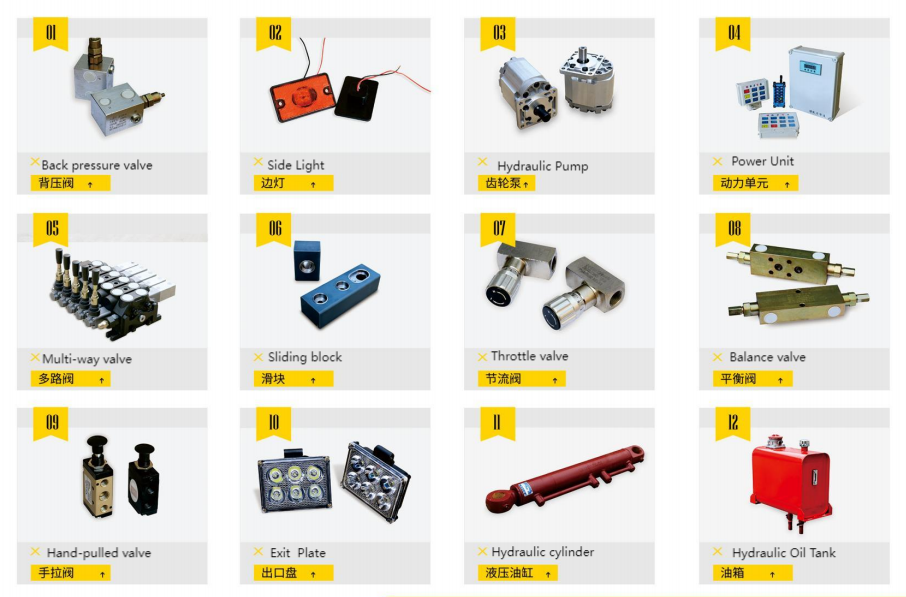

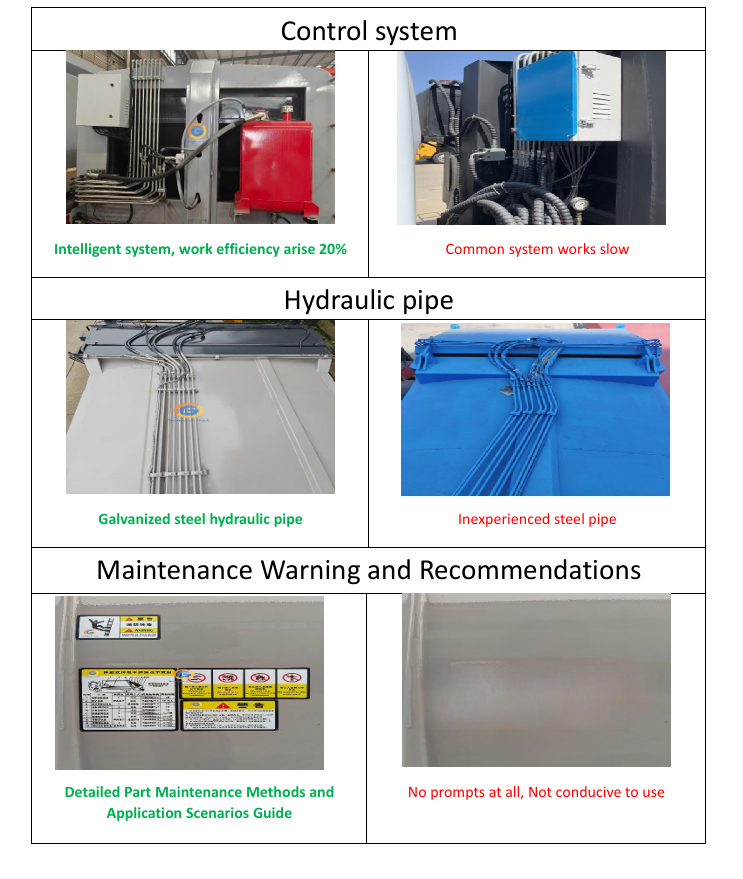

Common Use Core Parts
Application:
1. Residential communities: "Timed + high-frequency" classification and transportation of domestic waste
2. Commercial and business districts and dining clusters: A collection and transportation model of "nighttime assault + sewage control"
3. Municipal public areas: Dynamic collection and transportation featuring "immediate clearance upon filling + flexible shuttle"
4. Industrial Park: "High-strength + corrosion-resistant" industrial waste removal
5. Large-scale event sites: "On-site support + rapid clearance"

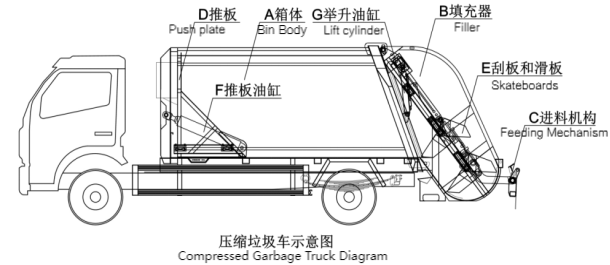

Working principle: After the garbage is poured into the filler, it is compressed and filled through mechanisms such as scrapers, sliding plates and pushers. The scraper cylinder contracts, the scraper expands counterclockwise, the slide plate cylinder contracts, and the slide plate mechanism slides down. Then, the scraper cylinder rotates clockwise, the slide plate cylinder extends, and the scraper mechanism slides up. At this point, the garbage will be compressed in both directions, completing the secondary compression. When the force sliding on the skateboard is transmitted to the pusher, the pusher cylinder generates back pressure. When the back pressure reaches a certain value, the oil in the rodless cavity of the pusher cylinder returns to the oil tank, and at the same time, the pusher cylinder retracts, squeezing the garbage into the vehicle compartment and compacting it.
