Introduction:
Fire trucks are specialized vehicles used for extinguishing fires, emergency rescue, and handling dangerous incidents.
Fire trucks are the core equipment of urban and rural safety systems. Their core components are designed around "rescue efficiency" and "personnel safety", mainly including:
Different scenarios correspond to dedicated vehicle models. The core types include:
1. Water tank fire truck
2. Foam fire truck
3. Aerial platform fire truck
4. Emergency rescue fire truck
5. Forest fire truck
Fire Fighting Truck Technical Data

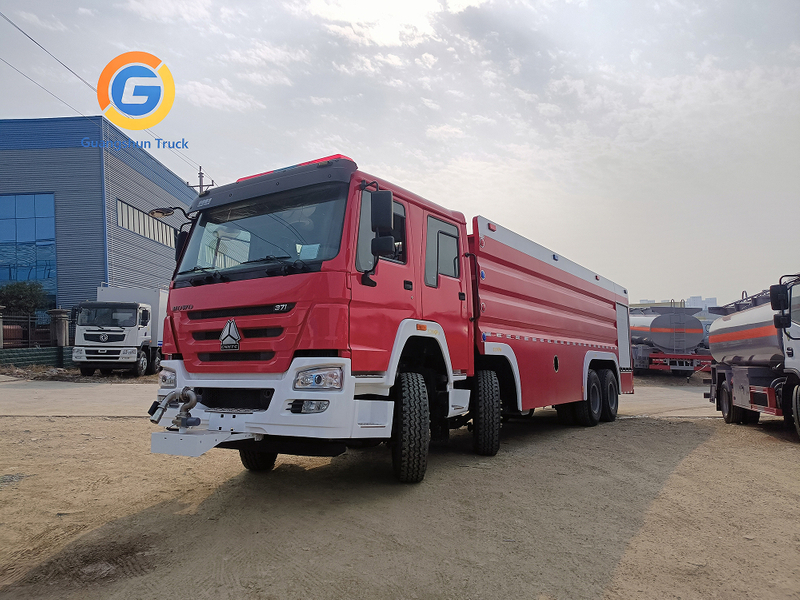

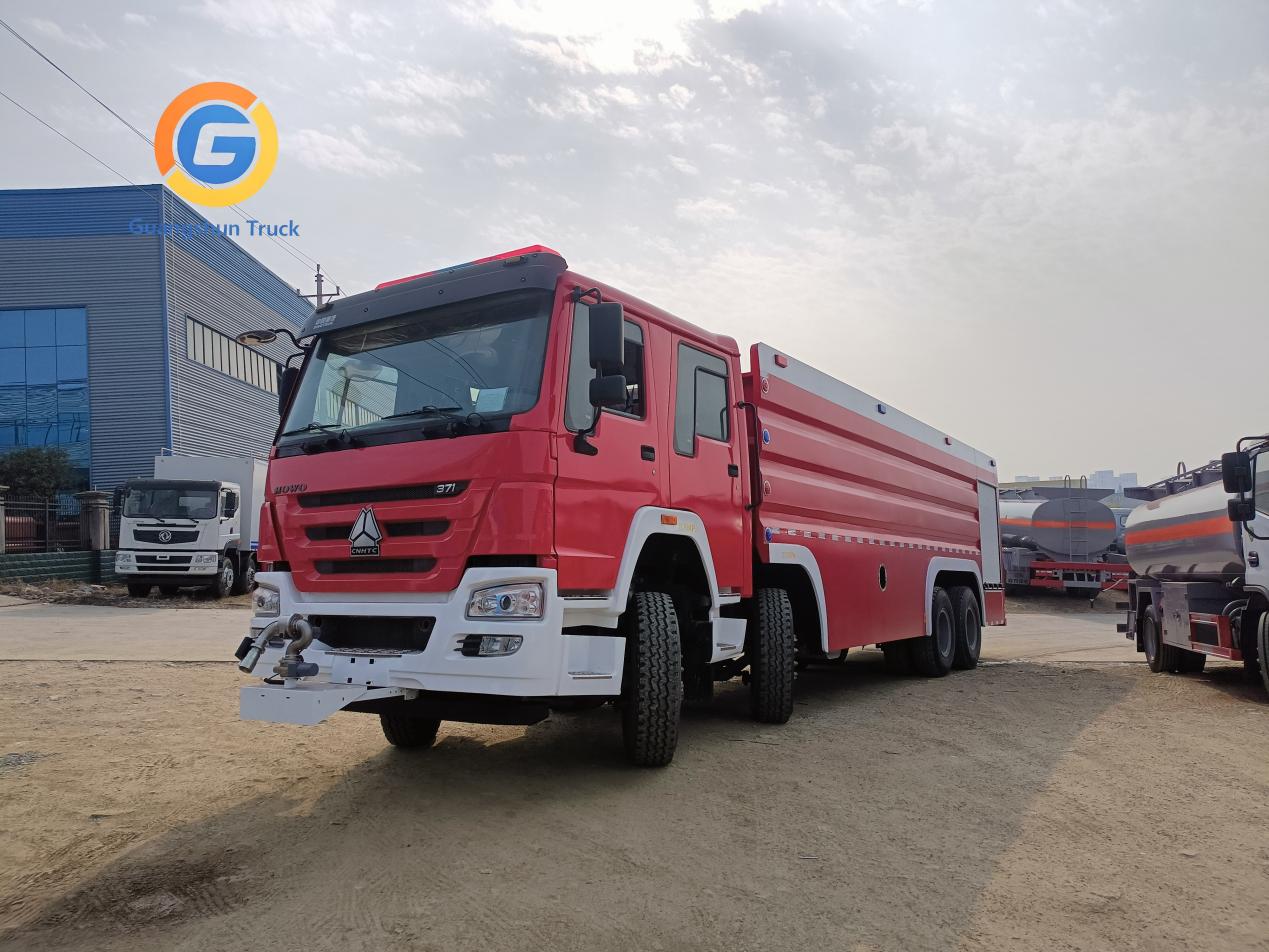

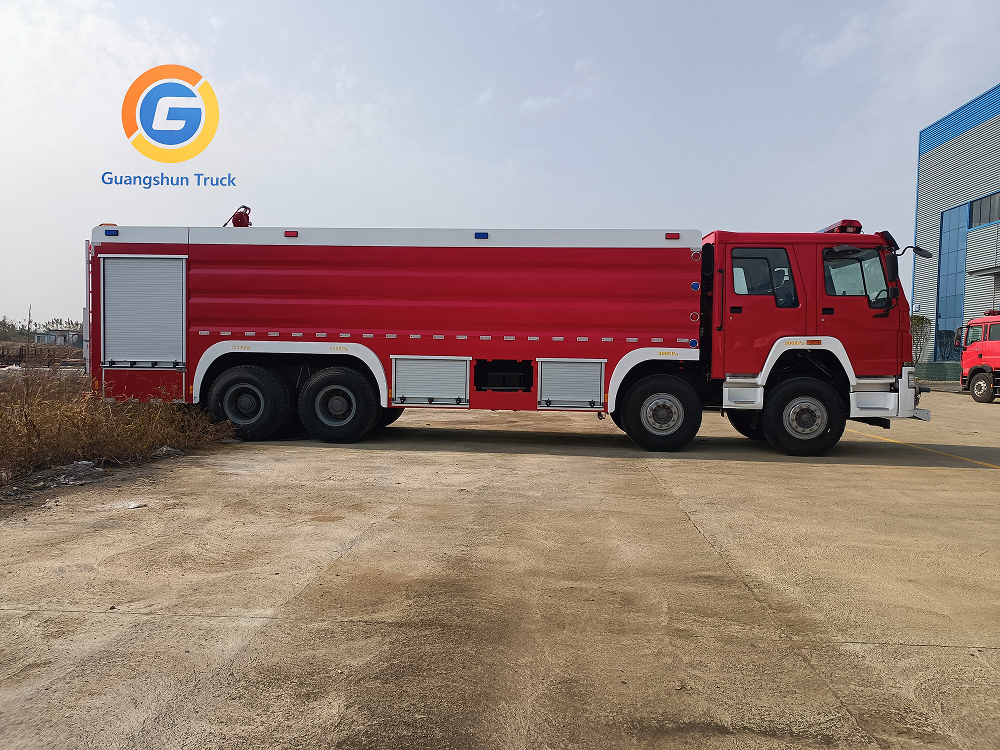

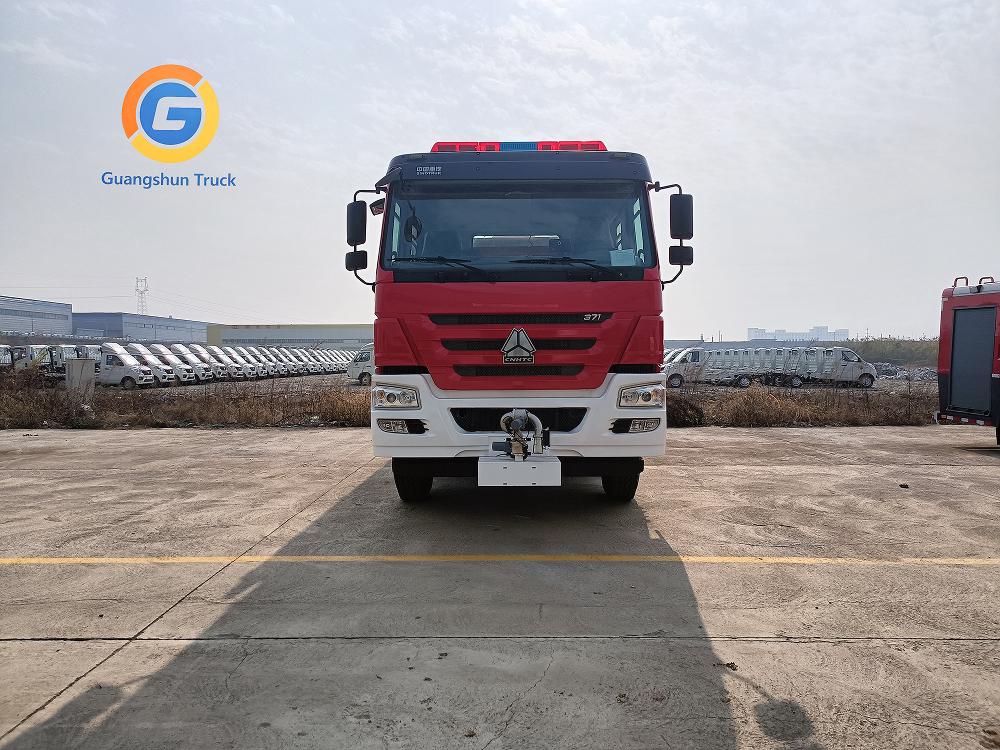

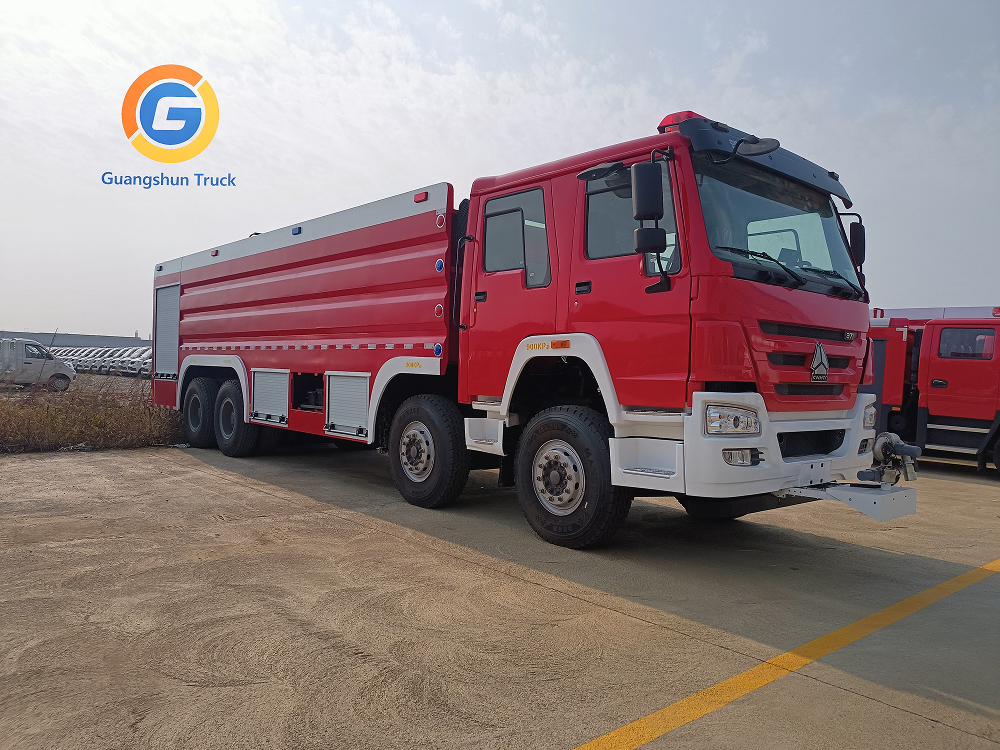

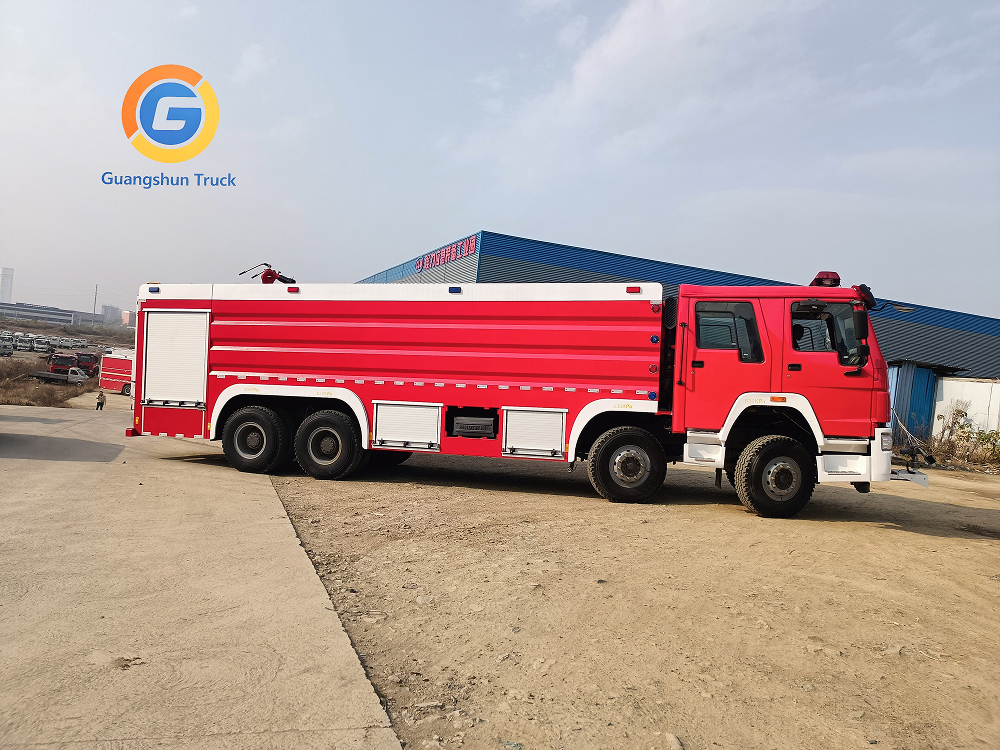

Guangshun HOWO 8X4 Fire Truck with loader crane | |||
The General Technical Parameters | |||
Vehicle Brand | Guangshun | ||
Chassis Brand | HOWO 8X4 | ||
Overall Dimension | L×W×H, 12000-2550-3500mm | ||
Tanker Body | Water tanker | 10cbm, carbon stee! | |
Foam tanker | 15cbm, carbon stee! | ||
G.V.W | 31 000kg | ||
The Chassis Specifications | |||
Steering wheel | 6X4, Left Hand Drive | ||
Wheelbase | 1800+4600+1400mm | ||
Transmission | Manual,FAST 10 Speed,Manual | ||
Tire Specs Number | 1200R20, 10+1 (spare tire) | ||
Front / Rear Axle Load | 7500kg*2/16000kg*2 | ||
Brake type | Air brake | ||
The Cabin | |||
Cab type | HOWO 8X4 ,Allowable 3+3 passengers | ||
The Engine Specifications | |||
Engine | Fuel Type | Diesel | |
Brand /Model | WEICAHI WP10.380E22 | ||
Horsepower | 380 hp/280kW | ||
Displacement | 9726ml | ||
Engine Type | In-line 6 cylinder, supercharged and intercooled | ||
Emission standard | EURO 2 | ||
The Upper StructureTanker Description | |||
Tanker Body | Water tanker | 10cbm, carbon stee! | |
Foam tanker | 15cbm, carbon sleel | ||
1 set manhole with guick lock and open device, | |||
Fire pump | Model | CB1060,nomal pressure pump | |
Flux | 60L/S | ||
Pressure | 1.0Mpa | ||
Suction depth | 7m | ||
Fire monitor | Model | PL8148 | |
Flux | 48L/S | ||
Pressure | 0.8Mp3 | ||
Range | Water≥ 270m | ||
Foam≥ 260m | |||
Rotation angle | -45- 70° | ||
Other configuration | Equipped with sandwich PTO, pipe line system Equipped with equipment box and pump box; | ||
Guangshun Fire Truck: All-round advantages forge a reliable fire-fighting force
1. High Firefighting Efficiency, Directly Targeting the Fire Core
Guangshun fire trucks are equipped with advanced firefighting systems. A high-pressure water pump and efficient spraying system work together to deliver large quantities of water or fire extinguishing agent in a short period of time.
2. High Maneuverability, Quickly Arriving at the Scene
Equipped with a high-quality chassis and powerful engine, these vehicles can swiftly navigate congested urban roads, narrow alleyways, and complex road conditions, quickly reaching the scene of a fire and buying valuable time for rescue operations.
3. Flexible Customization Options to Meet Diverse Needs
Guangshun fire trucks offer a wide range of customization options. In addition to the standard water monitor and water gun, optional foam injection systems, dry powder fire extinguishing devices, and high-expansion foam generators are available upon request.
4. Robust and Secure Design to Protect Firefighters
The vehicle body is constructed of high-strength steel, offering excellent impact and deformation resistance, effectively protecting occupants from external impacts.
5. Comprehensive After-Sales Service for Ongoing Worry-Free Guarantee
Provides professional training for firefighters, covering vehicle operation skills.
