The water truck, also known as the greenery spraying truck or water sprinkler truck, is a special vehicle used for road washing, dust suppression, moistening and other operations.
Working principle :When the water truck is in operation, part of the engine power drives the vehicle to move, and the other part drives the water pump to operate through the power take-off box and the belt reduction device. During the water sprinkling operation, the water pump draws water from the water tank and conveys it through pipes and valves to the water sprinkling devices at the front and rear of the vehicle. When adding water, it can be done through the fire hose or by drawing water from the reservoir with a water pump.

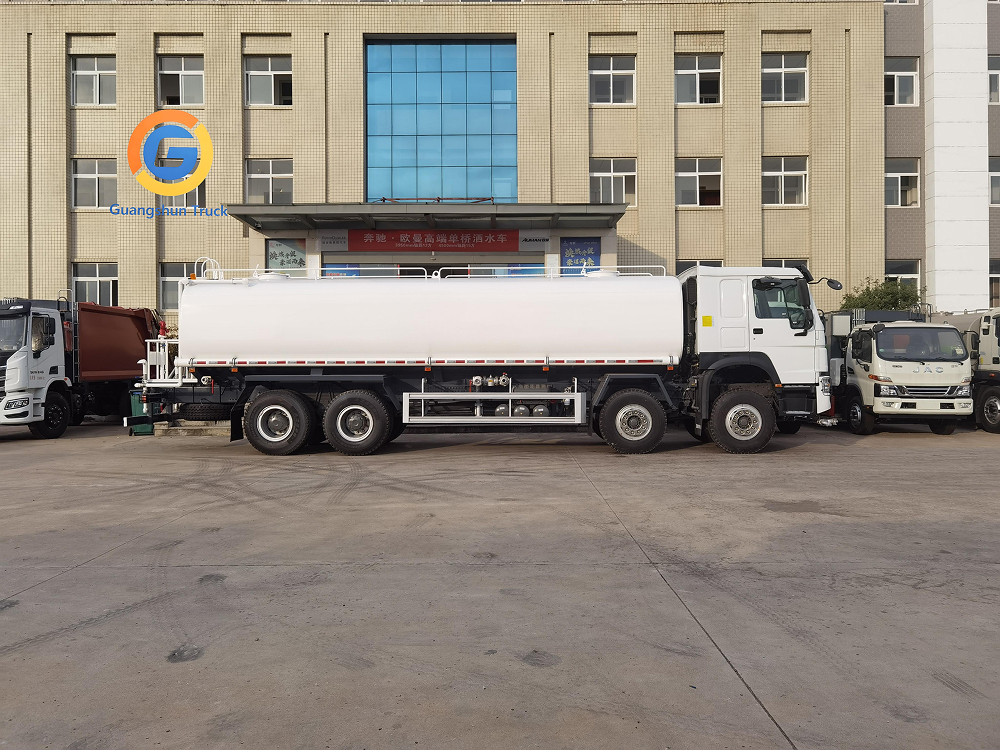

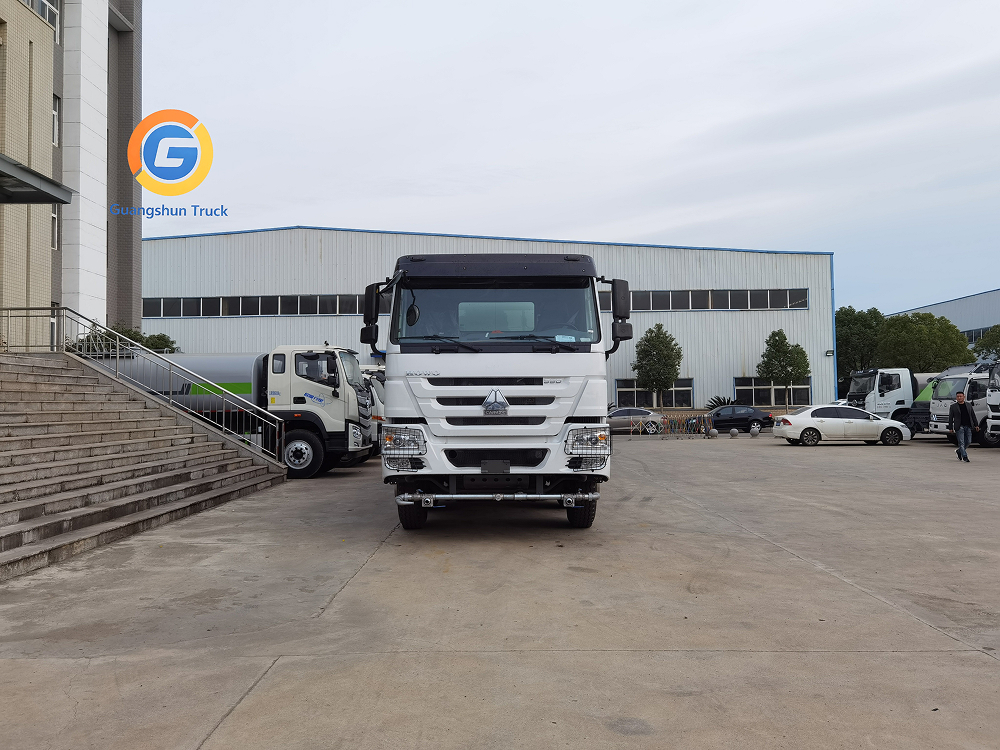

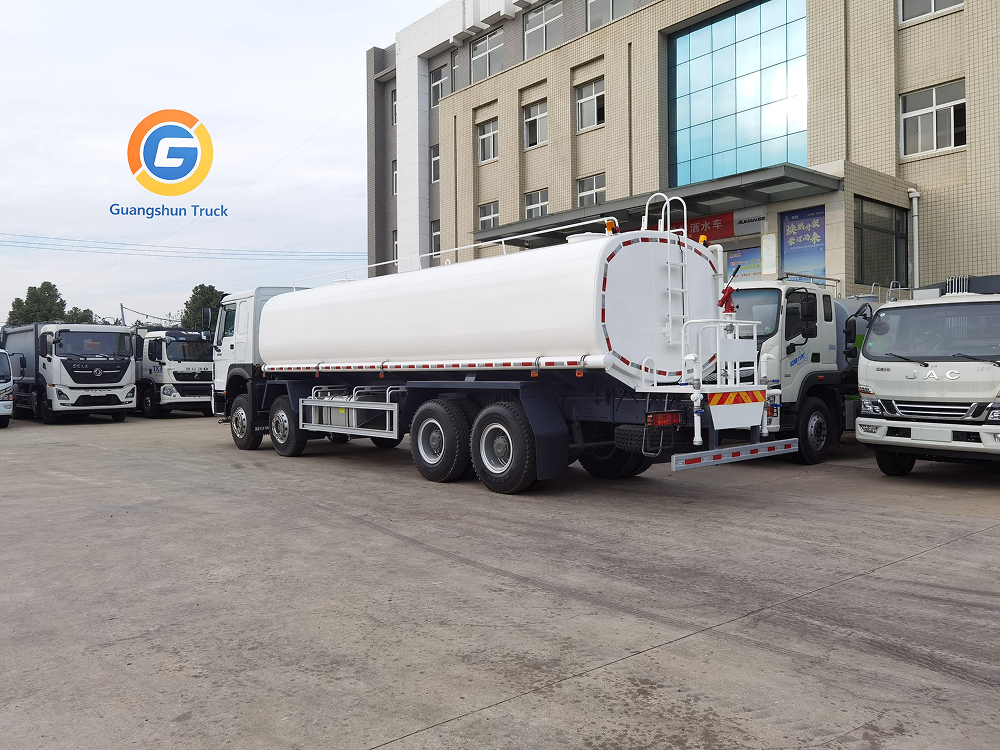

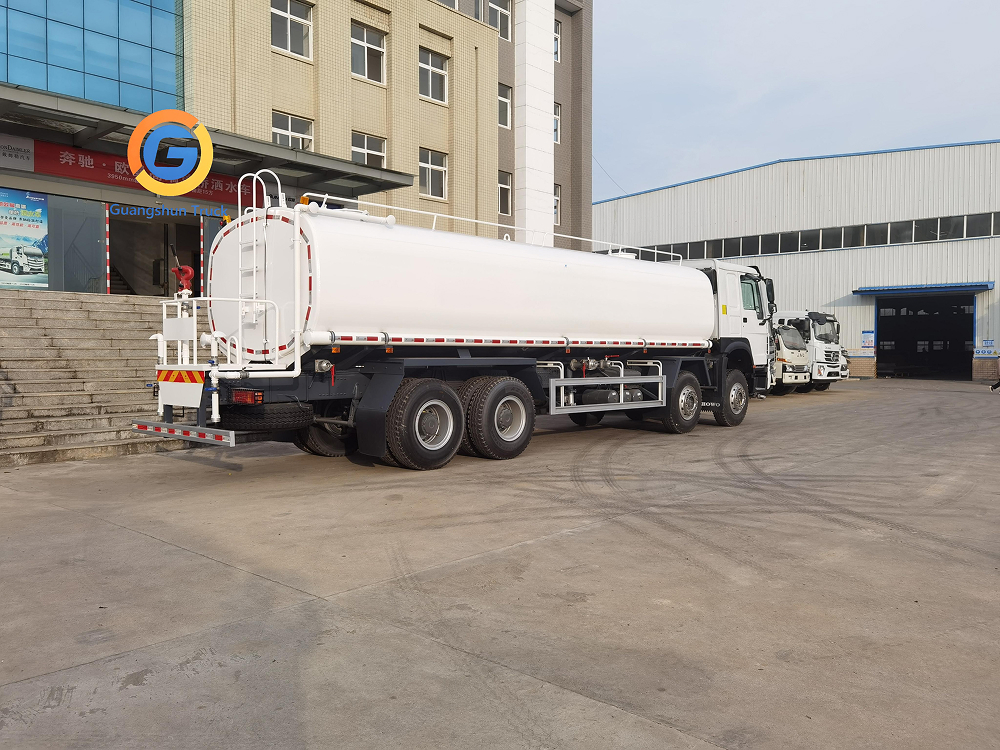

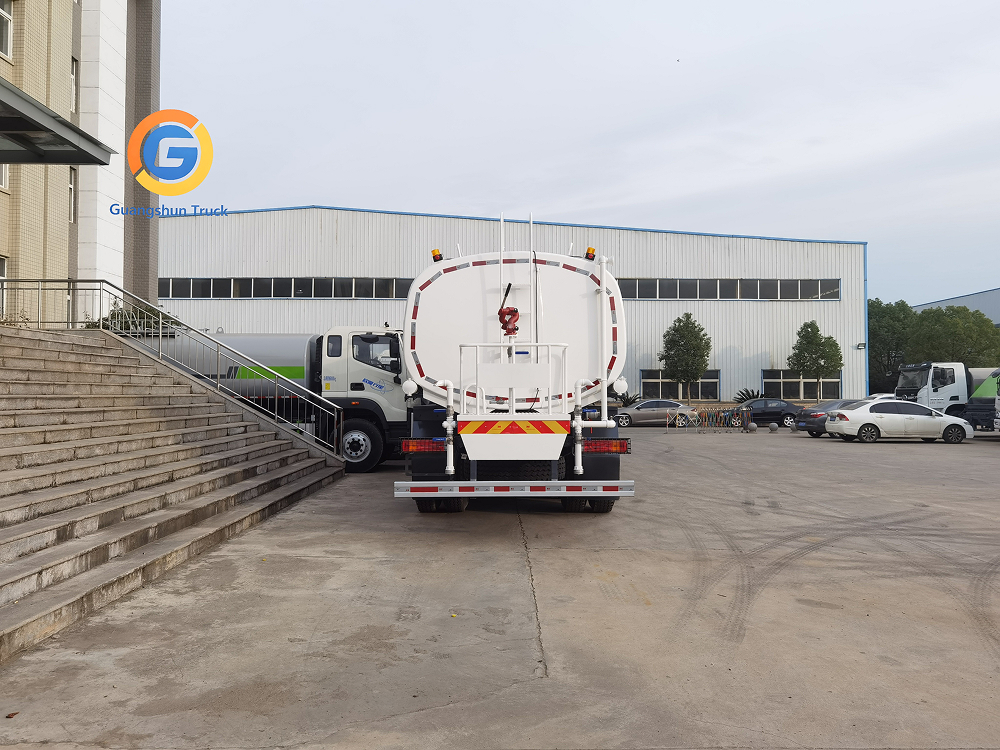

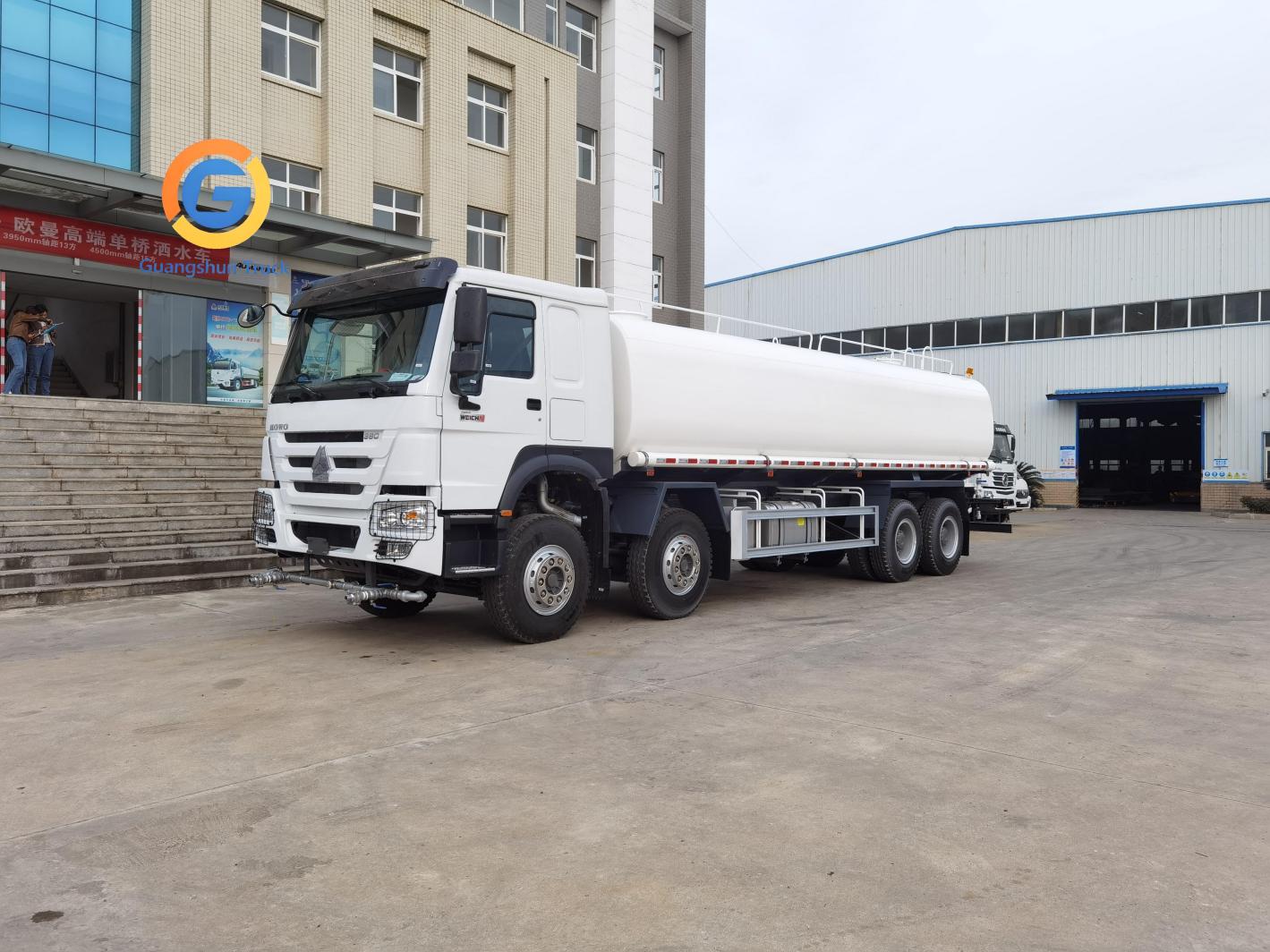

Main functions :Water trucks are mainly used in fields such as urban street cleaning, construction sites, agricultural irrigation, and greenery irrigation. They can perform functions such as road surface washing, dust suppression, greenery watering, and emergency fire fighting. They can also prevent road icing in winter, lower temperatures and keep moisture in dry weather, and improve the urban environment. Detailed Photos
Guangshun Water Truck | ||
General | Vehicle Brand | Guangshun |
Chassis Brand | HOWO ZZ1047D3414D | |
Overall Dimension | L×W×H, 5995×2350×2850MM | |
Water Tank Capacity | 8cbm | |
G.V.W | ≤5 000 kg | |
Curb Weight | 3250 kg | |
Chassis | Steering wheel | 4x2, LH Drive or RH Drive |
Wheelbase | 3360mm | |
Transmission | Manual, WLY6TS40 6Speed | |
Tire Specs Number | 7.00R16 Tubeless tire (spare tire) | |
Front / Rear Axle Load | 2400kg / 4200 kgs | |
Fuel Tank | 120L Iron tank | |
Max.Speed | 90km/h | |
Cab | Cab type | HOWO Dram 1880mm single row cab |
Crew seat | 3 | |
Engine | Engine brand | YUNNEI |
Engine model | YN4102QBZL | |
Type of fuel | Diesel | |
Horsepower | 116hp | |
Displacement | 3760ml | |
Emission standard | EURO 3 | |
Water Tank Body | Load capacity | 10cbm |
Lifting Device Material | Q235 High strength steel | |
Middle Insulation layer | 8mm thickness | |
Water Pump | Model | WEILONG 80QZF-60/90S pump |
Flow rate(L/m) | 60m3/h | |
Head of delivery(m) | 90m | |
Self-priming function(min/4m) | 1.5 | |
Efficiency(%) | 95% | |
Related rotate speed(r/min) | 1180 | |
Matched power(kw) | 22 | |
Water sprinkler system | Front sprinkler jet | 14m |
Rear sprinkler jet | 13m | |
Rear sprinkler nozzle range | 12m | |
Water cannon range | 45m | |
Water time | >5 minutes | |
Working condition | Flowz60L/m, 1.55Mpa | |
Max working pressure | >0.9Mpa | |
Other | One set of evaporator protection frame, 2 drainage holes, 2 LED lights, waterproof switch | |
Note:This parameter is the manufacturer's standard, and the actual parameter varies according to customer demand. | ||
