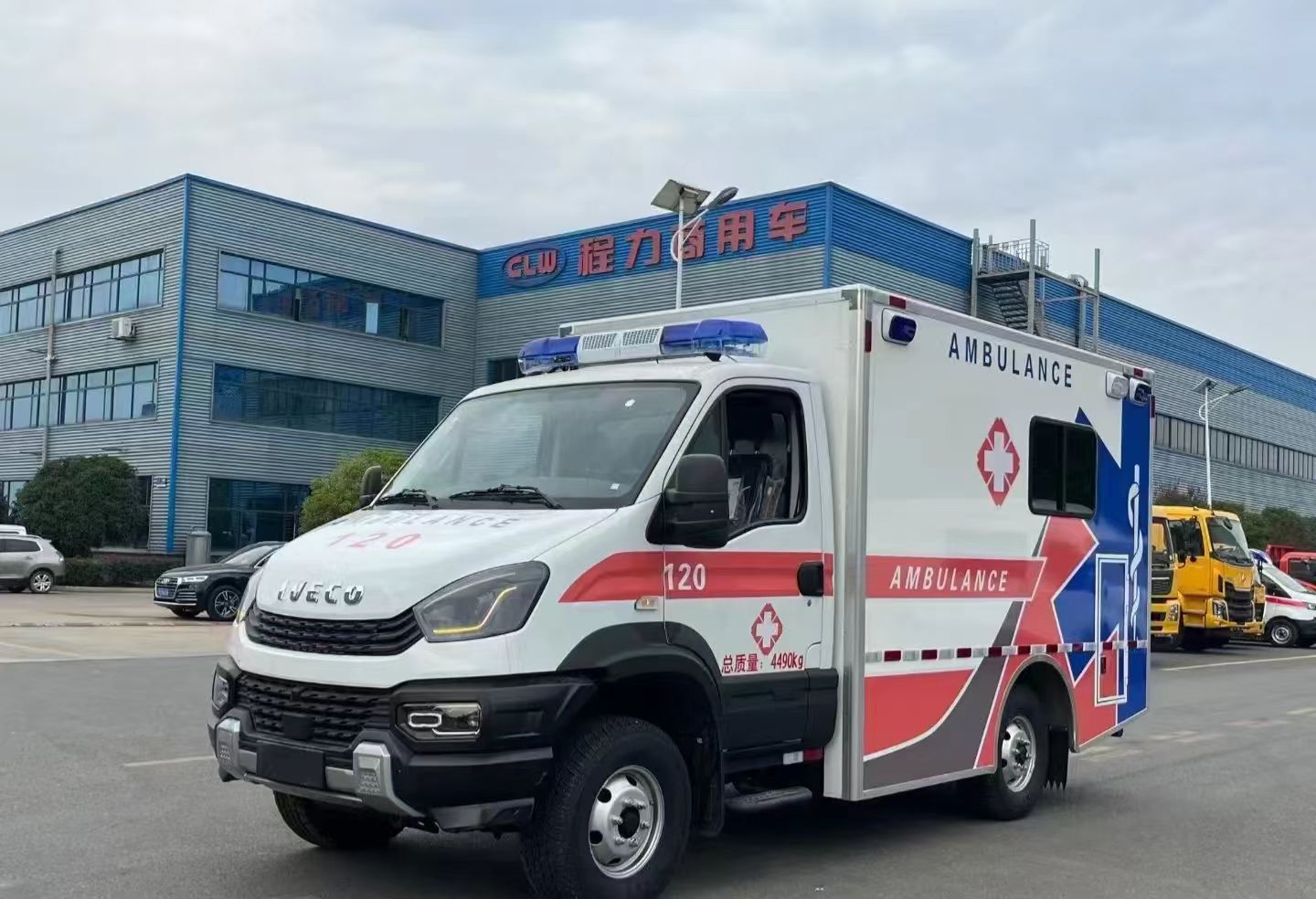

IVECO Ambulance
Hubei Guangshun Truck of CLW
Main Parameters | ||
General | Chassis Brand | IVECO |
Steering wheel | Off Road 4x4, LH Drive | |
G.V.W | ≤6000 kg | |
Chassis Overall Dimension | 5320×2310×1950 | |
Whole Truck Dimensions | 5670X2310X2600 | |
Chassis | Chassis Model | EQ2063EYY6J |
Wheelbase | 3800mm | |
Transmission | 5MT | |
Front/rear track (mm) | 1880/1850 | |
Front /rear overhang (mm) | 630/890 | |
Tire Specs Number | 305/80R18 | |
Front/Rear Axle Load (kg) | 2600/3400 | |
Chassis wading depth | 1.2M | |
Engine | Engine brand | Cummins |
Engine model | D4.0NS6B195 | |
Type of fuel | Diesel | |
Horsepower | 195hp /143kw | |
Displacement | 4.0L | |
Fuel Tank | 70L+50L | |
Cab | Cab type | M50 Single Row Standard Cab |
Air conditioner | independent front and rear air conditioning | |
Crew seat | 6Seats | |
Temperature adaptation | -35°C-45°C | |
Please note that if using non-standard customized iron drums, you must also provide the dimensions of the iron drums. |
Ambulance Upper body configuration | ||
1 | Appearance markings | 1. First aid sign 2. Exterior stripes Or custom-made |
2. | Alert system | 1. 100W siren and handheld control 2. Long strip warning light mounted on the front of the roof 3. Side flashing lights 4. Rear flashing lights 5. Rearfield lighting |
3. | oxygen supply system | 1. One oxygen inhaler 2. One set of concealed oxygen tubing 3. Two 10L oxygen cylinders (including pressure reducing valves) 4. Two national standard oxygen ports |
4 | Air conditioning system | 1. Original air conditioning in the driver's cab 2. High-powered air conditioning (heating and cooling) in the medical compartment |
5. | Lighting system | 1. Install 4 lights on the top. |
6. | sterilization system | 1. One ultraviolet disinfection lamp |
7. | stretcher system | 1. One automatic loading stretcher 2. Stretcher pads and guardrails |
8. | Power supply system | 1. One 2000W inverter 2. Two 220V power sockets 3. Two auxiliary batteries, each 80AH |
9. | Floor assembly | 1. Environmentally friendly and corrosion-resistant laminated wood flooring 2. Medical-grade wear-resistant flooring with advantages such as flame retardancy, slip resistance, mildew resistance, easy cleaning, wear resistance, and acid and alkali resistance. |
10. | Central partition assembly | The high-polymer partition wall has a movable sliding window in the upper part. |
11. | Control cabinet assembly | 1. One 10-liter oxygen cylinder cabinet on the front left side of the medical cabin 2. A long, narrow, flat-windowed medicine and medical equipment cabinet on the left side 3. A small medicine cabinet behind the partition 4. One forward-facing seat on the right side of the medical cabin 5. A two-person long row of seats with seat belts on the rear right side |
12. | Other | 1. One fire extinguisher in the rear compartment 2. Two IV drip bottle holders 3. One waste bin |
Please note that if using non-standard customized iron drums, you must also provide the dimensions of the iron drums. | ||
Hubei Guangshun Trucks:Your Trusted Partner in Special Trucks Solutions.

Backed by our General Manager Mr. Jack Dong 20+ years of expertise in the special trucks industry, our company was establised in 2015, within more than 10 years producing experience, we have grown into a modern facility. Boasting dedicated production lines for emergency mobiel power vehicles, fire trucks, tanker trucks , garbages trucks,vaccum truck, wrecker tow truck. We achieve an annual output of 3,000+ units .
We stand as a high-tech enterprise certified by MIIT (Ministry of Industry and Information Technology) and equipped with full export credentials. We specialize in the manufacture of special vehicles through integrated R&D, design, production, sales, and service—with a firm commitment to creating value for our customers. Certified to ISO 9001, ISO 14001, ISO 45001, and China Compulsory Certification (3C), we strictly adhere to international standards of quality, safety, and reliability in every product we deliver.
Our ultimate vision :To consistently create long-term value for customers worldwide, and set new benchmarks for quality and innovation in the global special vehicles industry.




After Sale Service
After-Sales Service Policy of Hubei Guangshun (Guangshun Trucks) To provide full-cycle support and address customers' concerns, Hubei Guangshun (Guangshun Trucks) has formulated the following after-sales service policy:
1. In-Warranty Service
**Free Spare Parts Supply**: For faults caused by product quality issues, we commit to providing free original spare parts within one week, with transportation costs borne by the customer. -
**Technical Support**: 24/7 technical consultation hotline to answer customers' operation questions and provide troubleshooting guidance; electronic versions of
《Vehicle Maintenance Manual》 and 《Common Fault Handling Guide》 are provided to assist customers with daily maintenance.
2. Post-Warranty Service
**Preferential Spare Parts Supply**: We provide original spare parts for customers with long-term discount benefits. All spare parts meet the factory quality standards, and transportation costs are borne by the customer. -
3. Lifetime Technical Consultation
Regardless of whether the warranty period has expired, we provide customers with free lifetime technical consultation to help solve various problems encountered in vehicle use and recommend suitable maintenance solutions.
Contact information
After-sales service hotline: 0722-3801196 (24 hours)
After-sales service email: info@guangshuntrucks.com
Why choose Hubei Guangshun Truck ?
1 . Rich Experience
Our core members have more than 25 years experience of production,sales,research and development in the field of special trucks.
2. Specialization
We support OEM service according to your demands, the material,the size, the color and the logo is optional for you.
3. Super Quality
With solid technology, advanced equipment; Reliant quality and flexible operation models; strict quality control system and passed the ISO9001,ISO14001,ISO45001 and the 3C (china compulsory certification),with TUV .certifcate as well.
4. Chassis supply
We have a deep long term cooperation relationship with chassis manufacturer,
Such as ISUZU,Dongfeng, Sinotruck,HOWO,Foton, Shacman,I-VECO,FAW,HINO,CAMC,North-Benz,ect.
5. Production supply capacity
Regular Product 15-20 days after down payment, customized products 35-40days after down payment.
